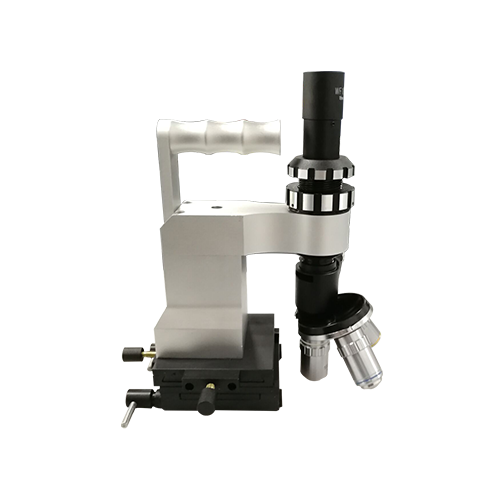

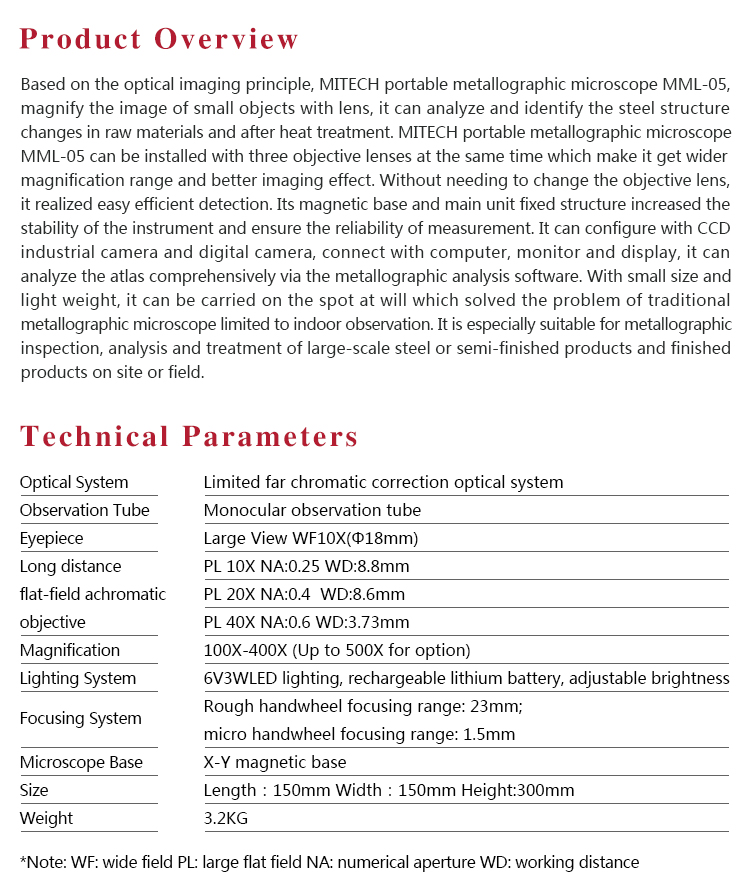

Based on the optical imaging principle, MITECH portable metallographic microscope MML-05, magnify the image of small objects with lens, it can analyze and identify the steel structure changes in raw materials and after heat treatment. MITECH portable metallographic microscope MML-05 can be installed with three objective lenses at the same time which make it get wider magnification range and better imaging effect. Without needing to change the objective lens, it realized easy efficient detection. Its magnetic base and main unit fixed structure increased the stability of the instrument and ensure the reliability of measurement. It can configure with CCD industrial camera and digital camera, connect with computer, monitor and display, it can analyze the atlas comprehensively via the metallographic analysis software. With small size and light weight, it can be carried on the spot at will which solved the problem of traditional metallographic microscope limited to indoor observation. It is especially suitable for metallographic inspection, analysis and treatment of large-scale steel or semi-finished products and finished products on site or field.

l Capable of installing three objectives at the same time without replacement, it makes the detection more efficient.

l Three objective lenses present more better imaging effect.

l With portable configuration, it is easy for carrying on site at will.

l Connecting with computer, monitor and display, with metallographic analysis software, it can conduct high-efficiency metallographic analysis like evaluating metal statues, analysis results and etc.

l Capable of equipping with external digital camera

l Using 3.6V DC for light, with LED lamp, it has low power consumption, high brightness and long service life;

l Capable of using 5 working days per charging.

l Comply with the relevant standards of metallographic microscope at home and abroad;

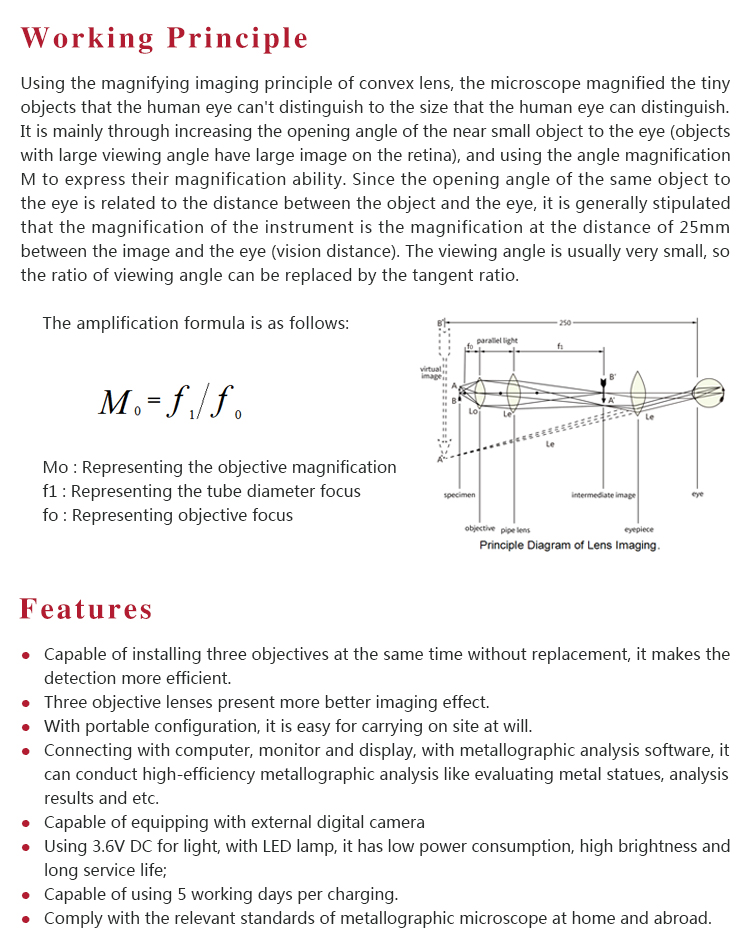

Using the magnifying imaging principle of convex lens, the microscope magnified the tiny objects that the human eye can't distinguish to the size that the human eye can distinguish. It is mainly through increasing the opening angle of the near small object to the eye (objects with large viewing angle have large image on the retina), and using the angle magnification M to express their magnification ability. Since the opening angle of the same object to the eye is related to the distance between the object and the eye, it is generally stipulated that the magnification of the instrument is the magnification at the distance of 25mm between the image and the eye (vision distance). The viewing angle is usually very small, so the ratio of viewing angle can be replaced by the tangent ratio.

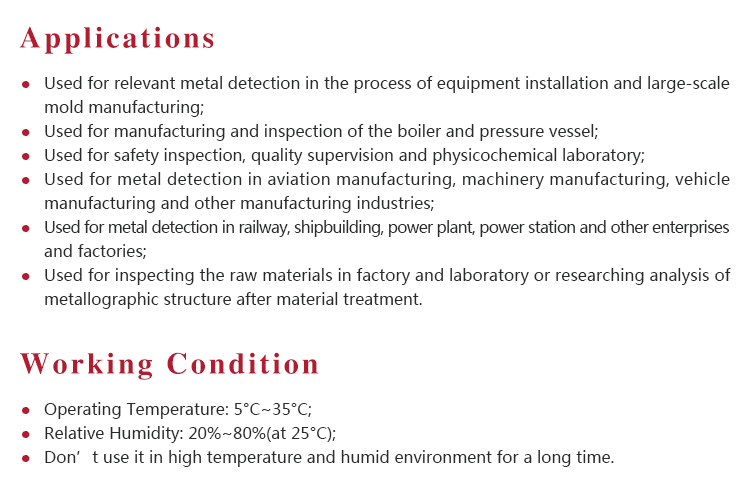

l Operating Temperature: 5°C~35°C;

l Relative Humidity: 20%~80%(at 25°C);

l Don’t use it in high temperature and humid environment for a long time.
