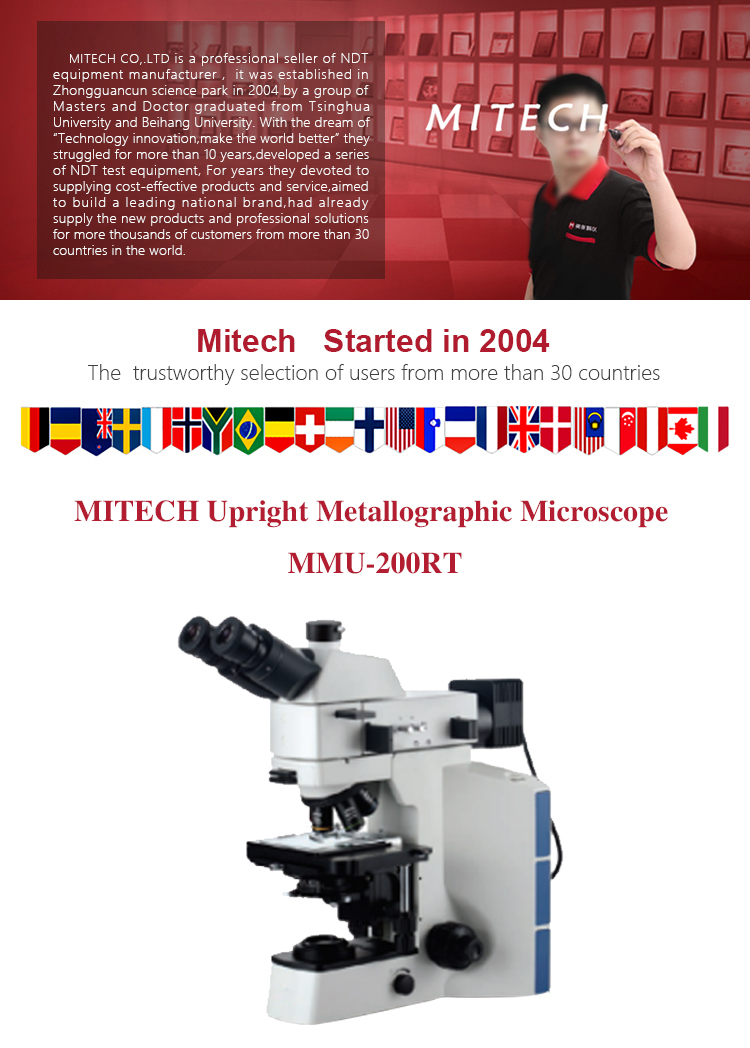

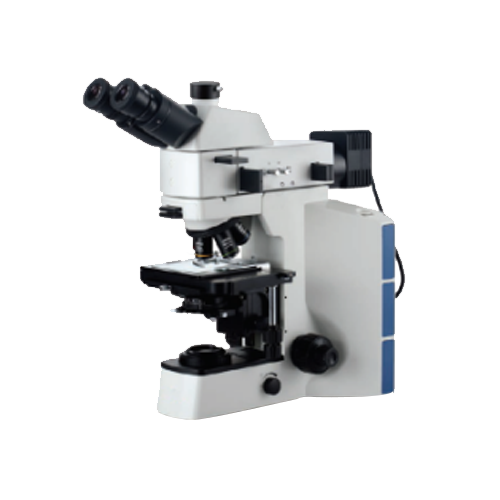

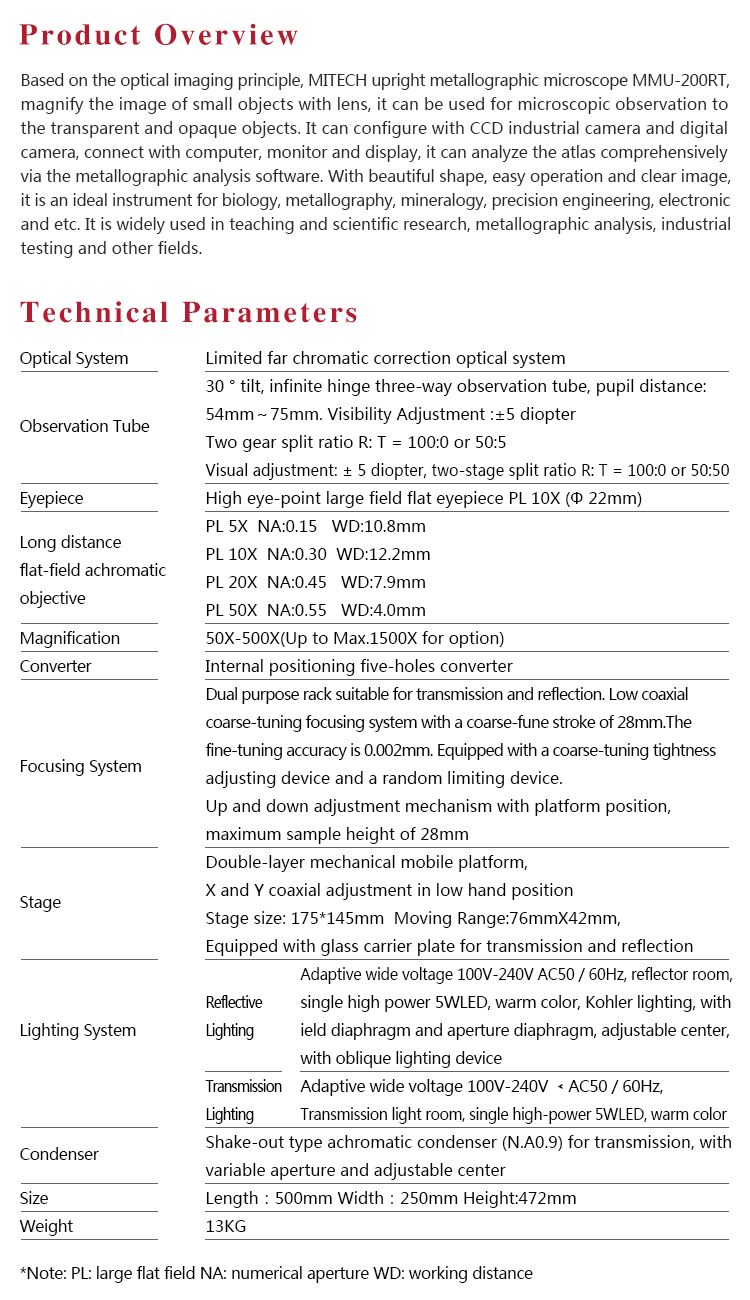

Based on the optical imaging principle, MITECH upright metallographic microscope MMU-200RT, magnify the image of small objects with lens, it can be used for microscopic observation to the transparent and opaque objects. It can configure with CCD industrial camera and digital camera, connect with computer, monitor and display, it can analyze the atlas comprehensively via the metallographic analysis software. With beautiful shape, easy operation and clear image, it is an ideal instrument for biology, metallography, mineralogy, precision engineering, electronic and etc. It is widely used in teaching and scientific research, metallographic analysis, industrial testing and other fields.

l With reflection and transmission lighting system, it can be applied to the observation of transparent and opaque objects;

l Dual purpose rack for reflection and transmission, with tightness adjustment device for preventing sliding and random upper limiting device. The maximum sample height is 28mm;

l It can be equipped with optional reflection rack and tightness adjustment device for preventing sliding and random upper limiting device. The maximum sample height is 78mm;

l Reflecting Kohler lighting, with field diaphragm and aperture diaphragm, adjustable center and oblique lighting device

l Connecting with computer, monitor and display, with metallographic analysis software, it can conduct high-efficiency metallographic analysis like evaluating metal statues, analysis results and etc.

l Comply with the relevant standards of metallographic microscope at home and abroad;

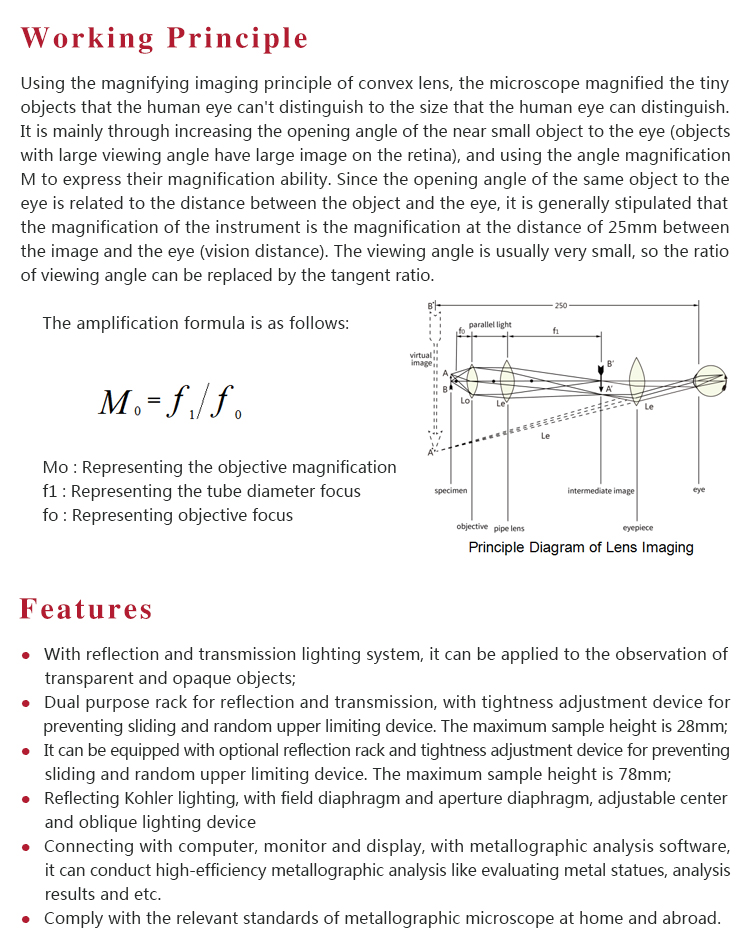

Using the magnifying imaging principle of convex lens, the microscope magnified the tiny objects that the human eye can't distinguish to the size that the human eye can distinguish. It is mainly through increasing the opening angle of the near small object to the eye (objects with large viewing angle have large image on the retina), and using the angle magnification M to express their magnification ability. Since the opening angle of the same object to the eye is related to the distance between the object and the eye, it is generally stipulated that the magnification of the instrument is the magnification at the distance of 25mm between the image and the eye (vision distance). The viewing angle is usually very small, so the ratio of viewing angle can be replaced by the tangent ratio.

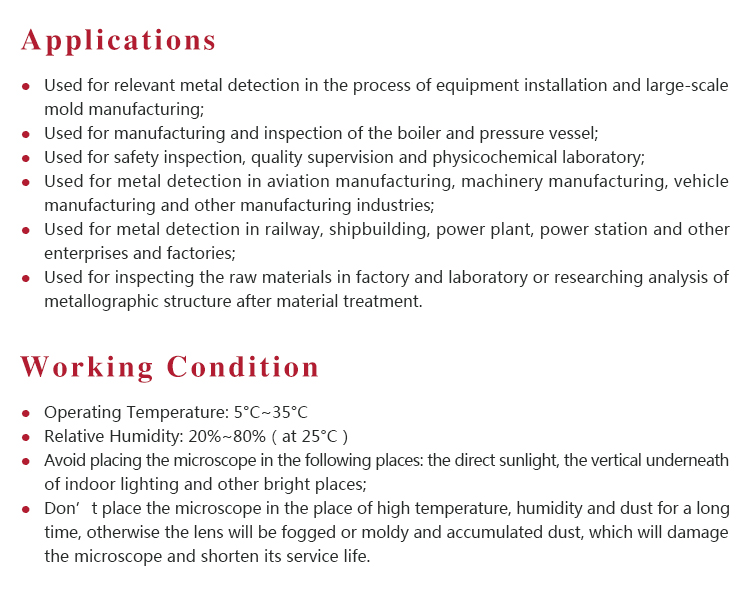

l Operating Temperature: 5°C~35°C

l Relative Humidity: 20%~80%（at 25°C）

l Avoid placing the microscope in the following places: the direct sunlight, the vertical underneath of indoor lighting and other bright places;

l Don’t place the microscope in the place of high temperature, humidity and dust for a long time, otherwise the lens will be fogged or moldy and accumulated dust, which will damage the microscope and shorten its service life.
